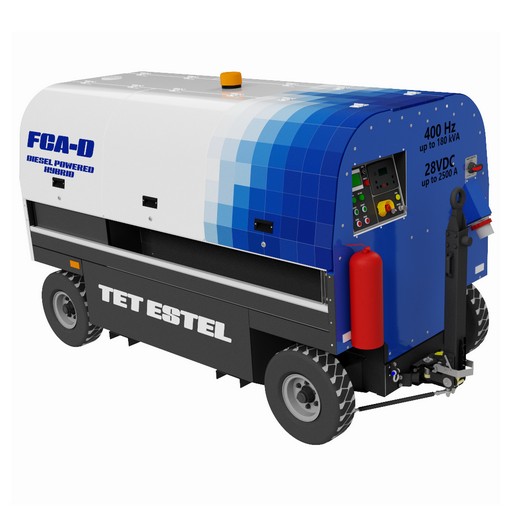

FCA-D Series
Suitable for all types of aircrafts and helicopters
High efficiency coefficient
Smart operational TFT display
Low noise level
Full diagnostic turn-up test
Designed to comply with RoHS and REACH requirements
Back to Catalog
Combine Diesel Ground Power Unit is designed to supply all type of aircraft and helicopter during preflight maintenance at the airport. DGPU consists of a 50 Hz diesel generator set, 400 Hz frequency converter and 28 VDC rectifier. DGPU allows supplying any types of loads with alternating voltage 3×400 / 230 V with a frequency of 50 Hz, alternating voltage 3×200 / 115 V with a frequency of 400 Hz and a constant voltage of 28 VDC.
Combine Diesel Ground Power Unit has the ability to work in two power modes:
– Self-powered mode: supply from internal diesel generator set
– Hybrid (static) mode: supply from an external power source 3x400V, 50Hz
- Smart operational TFT display
- Full diagnostic turn-up test
- Energy consumption metering system
- Modularity
- Maximum individual protection
- Innovative design
- Easy operation and maintenance
- Total harmonic content not more 3.0 %
- Outgoing 400 Hz 3 phase sinusoidal voltage high quality
- High efficiency factor
- Possibility of modification/adjustment in accordance to the Customer’s needs
- Energy consumption low level
| Output parameters (AC): | |
| Rated output power, kVA | 30-180 |
| Rated output voltage phase/line, V | 3 x 115/200 |
| Output voltage frequency, Hz | 400 ± 0,001% |
| Output voltage regulation accuracy, %: | |
| – for balanced load | ± 0,5 |
| – for 30 % unbalanced load | ± 0,5 |
| Total harmonic content THDU, % | |
| – linear load | ≤2 |
| – nonlinear load | ≤2 |
| Phase symmetry, electrical degree: | |
| – for balanced load | 120 ± 1 |
| – for 30 % unbalanced load | 120 ± 1 |
| Crest factor | 1,414 ± 0,04% |
| Permissible overload, %: | |
| – within 600 s | 150 |
| – within 2 s | 400 |
| Output parameters (AC): | |
| Rated output power, V | 28,0 |
| Rated output current, A | 400-1200 |
| Current overload,2s , A | ≤2500 |
| Quantity of outputs | 1 |
| Input parameters for static work mode: | |
| Supply main rated voltage, V | 3×400 (380) |
| Supply main voltage permitted deviation, % | ± 15 |
| Supply nominal frequency, Hz | 50/60 |
| Supply main rated frequency deviation, Hz | ± 10 |
| Power factor at 100 % load | 1 |
| Line Current Distortion at nominal load THDI, % | ≤5 |
| Overall efficiency at nominal conditions, % | ≥96 |
| Power interruption | up to 25 ms |
| Starting current | No, soft start |
| Engine technical data: | |
| Manufacturer | Caterpillar (or any) |
| Cycle | 4 Stroke |
| Induction | Turbochanged |
| Governing Class | ISO8528 G2 |
| Fuel Tank, L | 350 |
| Fuel Consumptions, at 100% load | 10 hours |
| Generator: | |
| Number of Bearing | 1 |
| Insulation Class | H |
| Wires | 3P+N |
| Radio Interference | Supression is in line with European Standard EN61000-6 |
| Miscellaneous: | |
| Overall dimensions W x H x D, mm | 3300 x 1760 x 1800 |
| Weight, kg | ≤3000 |
| Ingress protection (converter module) | IP55 |
| Maximum ambient temperature, ºС | plus 56 |
| Minimal ambient temperature, ºС | minus 50 |
| Audible noise, 1m at static mode | 55dBA |
| Relative humidity, % | 30 to 80 |
