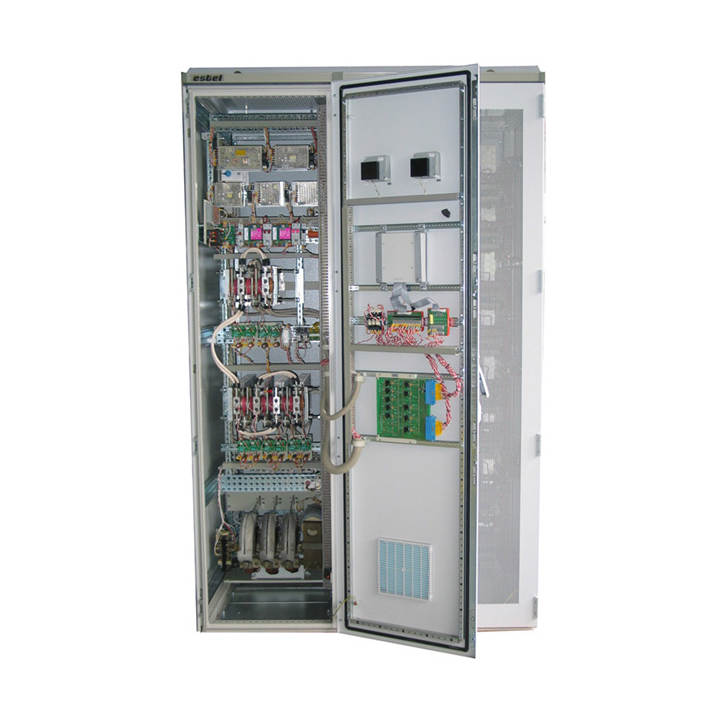

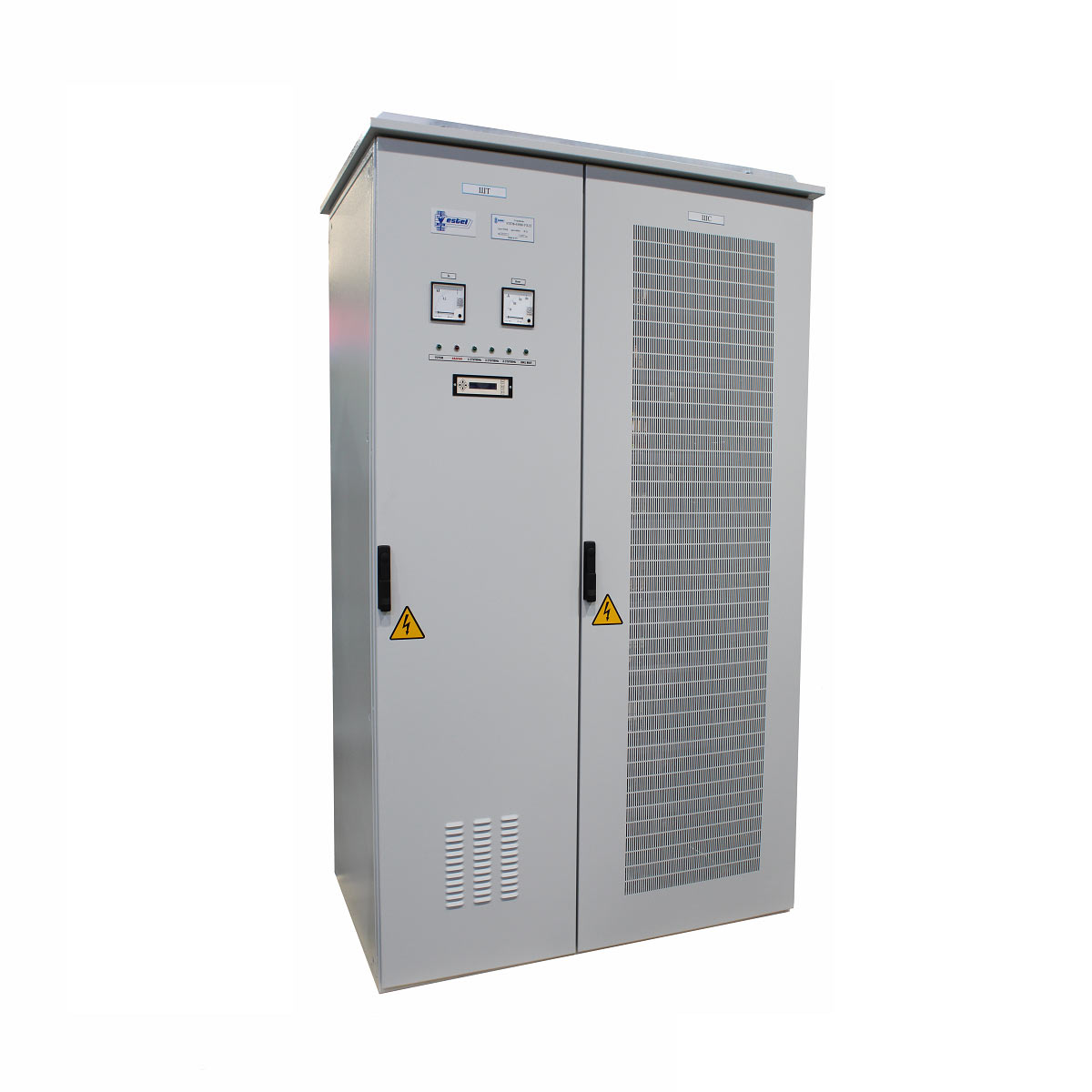

SSA Series
Rated power: 200 – 5000 kW
Stator voltage: 6 or 10 kV
Rotor voltage: 500 – 2000 V
Rotor current: 200 – 1200 A
Designed to comply with RoHS and REACH requirements
Back to Catalog
Starting device is used for contact-free smooth starting of asynchronous motors with a phase-wound rotor in various applications:
- belt conveyers in mining plants and power stations
- transporting conveyers of granular products
- slow start of pumps
- slow start of different lifting devices
- slow start of mills and crushers
Main advantages:
- smooth non-skidding movement of the conveyer belt upon system start by changing motor torque zero to the break-away momentum and maintaining a certain level of torque throughout acceleration
- possibility to run the conveyer at low speed needed for the initial loading and for maintenance procedures
- starter supports parallel running of motors of different makes
- high reliability in all climatic conditions
- safe starting of the conveyer after an emergency stop avoiding rollback in the case of an inclined positioning
| Rated power, kW | 200 - 5000 |
| Rated rotor voltage, V | 500 - 2000 |
| Rated rotor current, А | 200 - 2100 |
| Starting time untill rated speed, s | 10-540 |
| Ambient temperature range, С | minus 40 to + 40 |
| Cooling | natural air/ forceв air |
